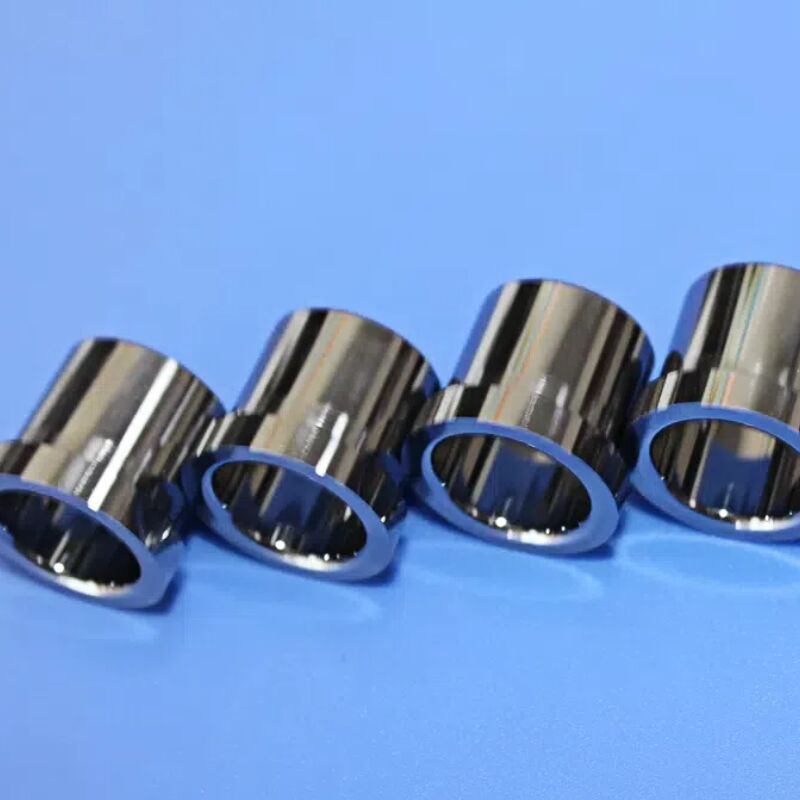

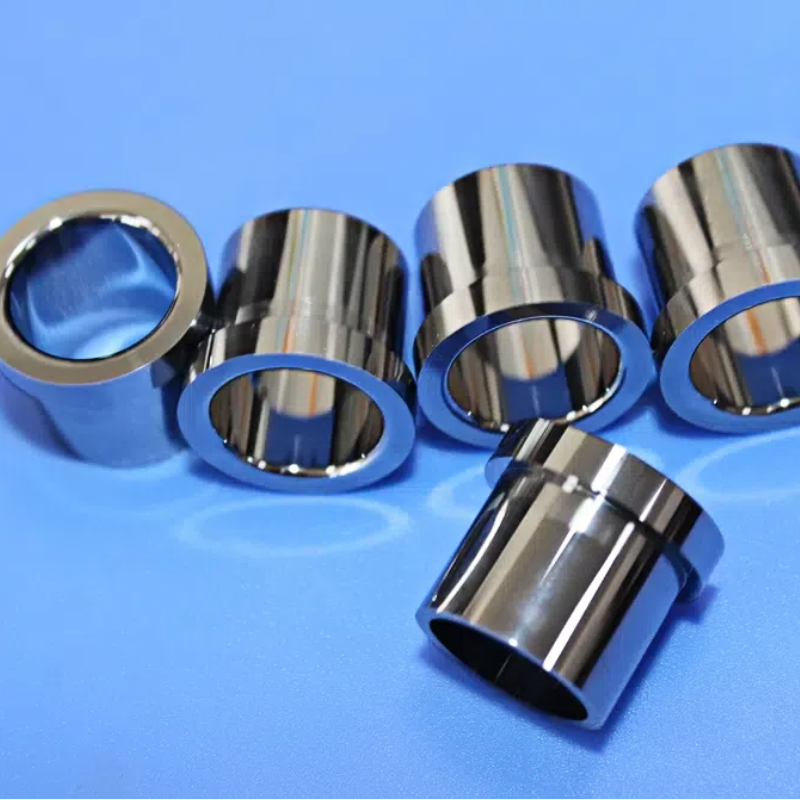

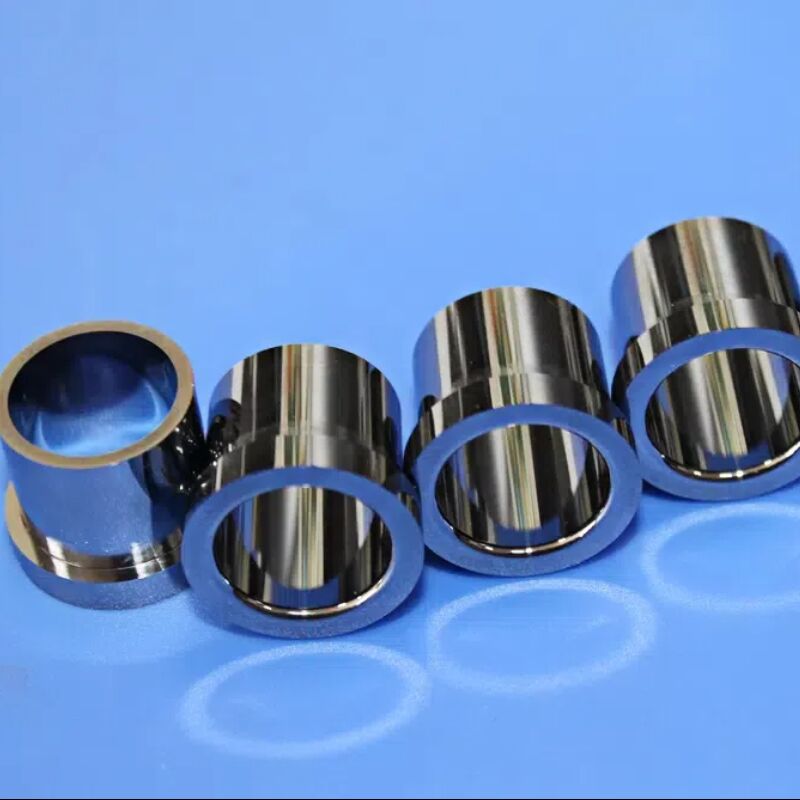

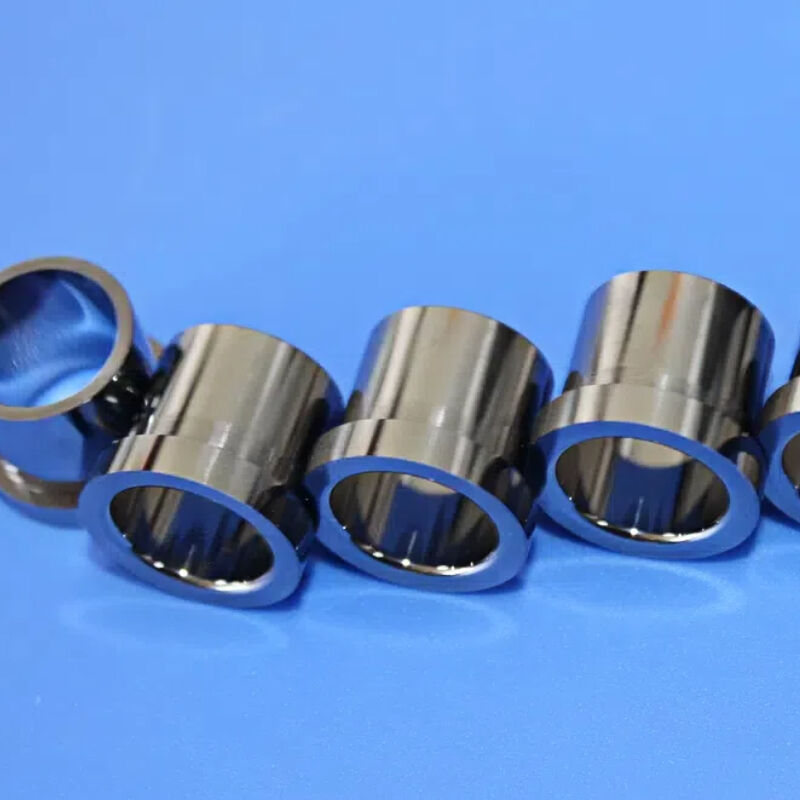

Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications
Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

Detalhes do produto:
Lugar de origem: China
Marca: Sanxin
Número do modelo: SX1287
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2
Tempo de entrega: 5-25 dias
Termos de pagamento: T/T
contacto
  • Informação detalhada
  • Descrição de produto

Informação detalhada
Usinagem: Processamento de carburo de tungsténio Serviço OEM: Aceitável
Inercia química: Alto Temperatura de têmpera: 1400 - 1600ºC
Nome do produto: Luva de carboneto de tungstênio Vantagem: Alta resistência ao desgaste
Indústria: Indústria do petróleo e do gás Temperatura de trabalho: -200 ° C ~ +800 ° C.
Embalagem: Pacote de exportação padrão Faixa de tamanho: Personalizável
Serviço: ODM OEM Projeto: com ranhuras de óleo
Temperatura operacional: Até 800 ° C. Resistência ao desgaste: Excelente
Destacar:

Non-Magnetic Tungsten Carbide Sleeve

,

High Wear Resistance WC-Ni Alloy Ring

,

Precision Ground Precision Bushing

Descrição de produto

Non-Magnetic Tungsten Carbide Outer Diameter Sleeve
WC-Ni Alloy Precision Ring For Magnetic-Sensitive Applications
Zero Magnetic Signature. Maximum Performance. In applications where even the slightest magnetic interference is unacceptable, our Non-Magnetic Tungsten Carbide Outer Diameter (O.D.) Sleeve sets the new standard. Engineered from specialized Tungsten Carbide-Nickel (WC-Ni) alloy, this precision component delivers the legendary hardness and wear resistance of carbide with a guaranteed non-magnetic property, making it the indispensable choice for MRI systems, semiconductor fabrication equipment, high-end scientific instrumentation, and aerospace guidance systems.
Key Material Advantages
  • Guaranteed Non-Magnetic: Magnetic permeability (µ) consistently measures < 1.002, ensuring zero impact on sensitive magnetic fields.
  • Exceptional Hardness & Wear Resistance: With a hardness of 90-92 HRA, it offers dramatically longer service life compared to tool steel or stainless steel, reducing downtime and maintenance costs.
  • Outstanding Dimensional Stability: Low coefficient of thermal expansion and high rigidity ensure precise tolerances are maintained under varying operational temperatures and loads.
  • Superior Corrosion Resistance: Excellent resistance to many chemicals, coolants, and cleaning agents, suitable for demanding industrial and cleanroom environments.
Typical Specifications & Machining Capabilities
Our sleeves are manufactured to meet the most stringent requirements. Standard and custom geometries are available.
Parameter Standard Capability High-Precision Option
Outer Diameter (O.D.) Range Ø3mm to Ø150mm Custom sizes available
O.D. Tolerance ±0.005 mm (g6, h6 standard) ± 0.001 mm (h4, h5)
Inner Diameter (I.D.) Through-hole or specific bore as per drawing Matched to your shaft specification
Concentricity (O.D. to I.D.) ≤ 0.008 mm ≤ 0.003 mm
Surface Finish (O.D.) Ra 0.4 µm (ground) Ra 0.1 µm or better (lapped/polished)
Length / Height Custom, according to application
Common Configurations
  • Simple Sleeve/Bushing: A straight ring for spacing, wear protection, or as a non-magnetic liner.

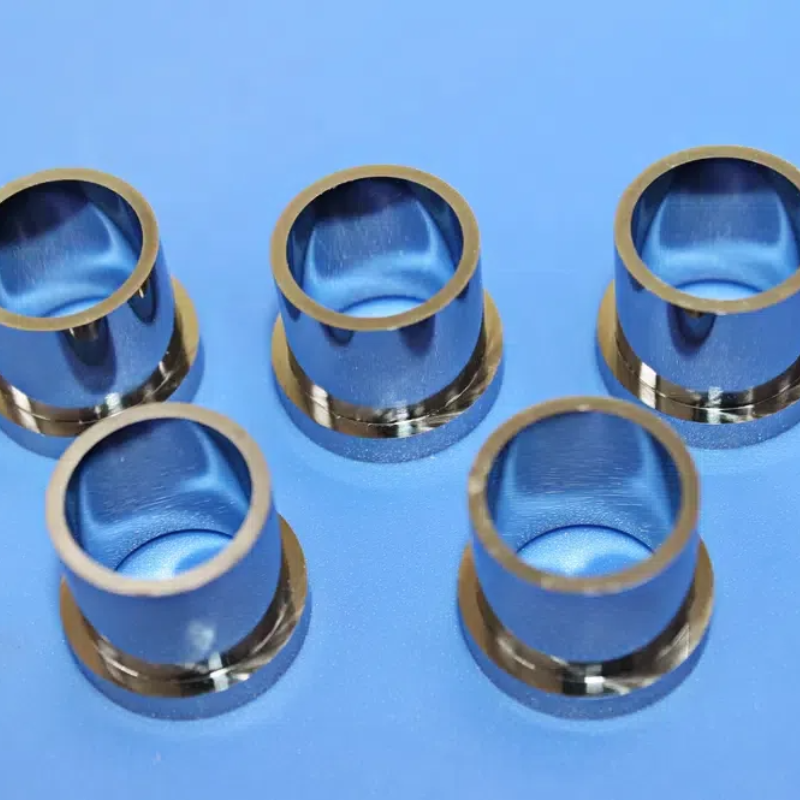

  • Flanged Sleeve: Integrates a mounting flange for easy axial location and secure fastening.
  • Stepped Sleeve: Features multiple outer diameters for complex assembly interfaces.
  • Custom Geometries: Including grooves, threads, or unique profiles machined to your exact blueprint.
Our Commitment
  • Custom Engineering Support: Our team works with you to optimize the design for manufacturability and performance.
  • Consistent Global Supply: Reliable logistics and export documentation for seamless integration into your international supply chain.
Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications 0
